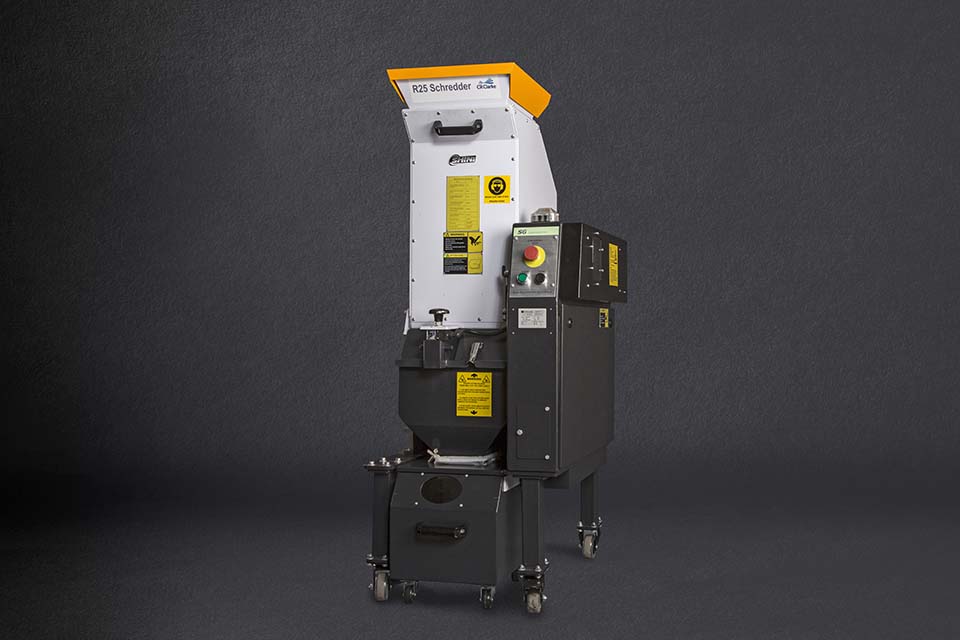

The R25 is an industrial quality plastic granulator.  Suitable materials for recycling include PP, HIPS, ABS and LDPE.  Materials to be granulated are loaded into the hopper at the top of the machine.  A combination of static and rotating blades gradually chops the material into smaller and smaller pieces.  Once the material reaches a small enough size it passes out through a mesh filter and into a collection bin.

The cutting blades are powered by a three phase motor fitted with a phase inverter, allowing operation from a normal 230V electrical supply.  A three-phase version of the R25 (R25HH) is also available.  When not in use, a lockable cover can be fitted over the inlet chute, ensuring that no unwanted debris enters the machine.

Voltage – R25H Single Phase Version

Voltage – R25HH 3 Phase Version

Power

Max Current

Blade Rotation Speed

Fixed Blades

Rotating Blades

Cutting Chamber Size

Output

Noise Level



Dimensions

Weight

230V 50-60Hz – R25H

400V 3 Ph – R25HH

1kW

5 Amps

290rpm

2

3 x 4

200 x 280mm

80Kg / Hour

85dB



870 x 615 x 1320mm

265Kg
